Technical performance characteristics of titanium rod filter

Posted on by admin
03
May

1. Corrosion resistance:

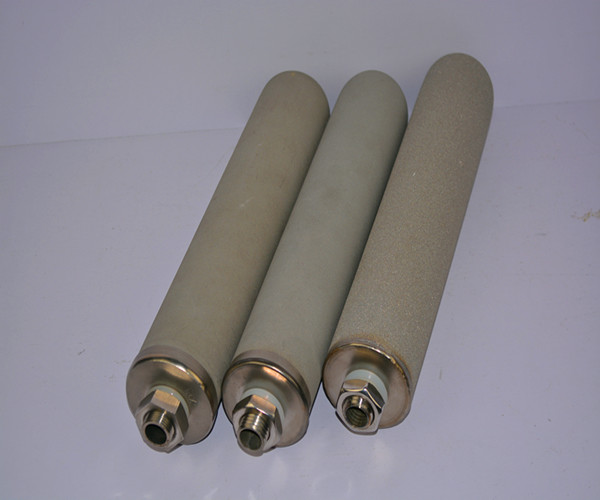

 Titanium is an inert metal with excellent corrosion resistance. The titanium rod filter element made of titanium metal can be filtered in a medium with strong alkali and acid. Can be widely used in the chemical industry, in the pharmaceutical industry organic lysoin production process filtration, due to the application of organic solvents, if the use of polymer filter elements such as: PE, PP filter elements to filter, easy to be dissolved by these organic solvents, and titanium rod in the organic solvent medium is quite stable, widely used.

Corrosion resistance of titanium filter media:

A: Corrosion resistance, corrosion rate below 0.127mm/year.

B: Compared with corrosion resistance, the corrosion rate is below 0.127mm-1.27mm/year, which can be used.

C: For corrosion resistance, the corrosion rate is more than 1.27mm/year, which is not recommended.



category Media name Medium concentration (%). Temperature(°C) Corrosion rate/year Corrosion resistance grade
not

machine

sour

 hydrochloric acid 5 Room temperature/boiling 0.00/6.53 A/C
10 Room temperature/boiling 0.175/40.87 B/C
sulphuric acid 5 Room temperature/boiling 0.00/13.01 A/C
60 room temperature 0.277 B
nitric acid 37 Room temperature/boiling 0.00/＜0.127 A/A
90 (white smoke). room temperature 0.0025 A
phosphoric acid 10 Room temperature/boiling 0.00/6.4 A/C
50 room temperature 0.097 A
Mixed acids Hc1 27.8% HNO₃17% 30 / A
Hc1 27.8% HNO₃17% 70 / B
HNO3:H2SO4=7:3 room temperature ＜0.127 A
HNO3:H2SO4=4:6 room temperature ＜0.127 A



category Media name Medium concentration (%). Temperature(°C) Corrosion rate/year Corrosion resistance grade
salt

dissolve

liquid

 ferric chloride 40 Room temperature/95 0.00/0.002 A/A
sodium chloride Saturated solution at 20 °C Room temperature/boiling ＜0.127/＜0.127 A/A
ammonium chloride 10 Room temperature/boiling ＜0.127/＜0.127 A/A
magnesium chloride 10 Room temperature/boiling ＜0.127/＜0.127 A/A
copper sulphate 20 Room temperature/boiling ＜0.127/＜0.127 A/A
barium chloride 20 Room temperature/boiling ＜0.127/＜0.127 A/A
copper sulphate CuSO4饱和H2S042% 30 ＜0.127 A/A
sodium sulfate 20 boils ＜0.127 A/A
Na2SO421.5%   H2SO410.1% ZnSO40.8% boils / A
C
ammonium sulphate Saturated at 20 °C Room temperature/boiling ＜0.127/＜0.127 A/A
