Nickel Alloy 625 Exhaust Tubing

Nickel based Inconel 625 Tube covered by the ASTM B444 takes into consideration cold worked seamless construction tubes. The UNS N06625 alloy or as referred to as Inconel 625 Tubing material is produced in 2 grades. The Inconel 625 Grade 1 Seamless Tubing is furnished in an annealed condition. On the other hand, Inconel 625 Grade 2 Round Tubing, as directed by the ASTM B444 specification is to be furnished in a solution annealed condition. Both grade 1 and Alloy 625 Grade 2 Exhaust Tubing need to strictly adhere to the chemical composition requirements of the said specification. Moreover, the Alloy 625 Grade 1 Welded Tubing is to undergo tests such as the tensile test while conforming to the required room temperature tensile properties. The properties which are to be confirmed by the Sb 444 UNS N06625 Inconel 625 Exhaust Tubing include its tensile strength and yield strength. In addition, the ASTM B444 UNS N06625 Grade 1 Tube must also conform to the elongation properties. Although these will depend on factors such as the heat treatment used on the UNS N06625 Grade Tubing including small diameter and light-walled 2.4856 Inconel Tubing. Do not forget to compare our price with UK and USA Inconel 625 tube suppliers. JIADE GROUP is the largest precision & hot finished Inconel Tubing manufacturer in China. Being one of the leading ASME Sb 444 UNS N06625 Alloy 625 Tubing Suppliers in China, we offer the most competitive price for these Inconel tubes

Description

Nickel Alloy 625 Exhaust Tubing & ASME SB 444 UNS N06625 Seamless Tube supplier

BS 3074NA21 Tubo and DIN/ WNR 2.4856 Material. Best Price Guarantee for all size of Inconel Tube, Seam weld Tubing, redrawn, Straight Tube, hot rolled & cold rolled Tubing Ex China

AS 9100D certified exporter & supplier of SB 704 N06625 Welded Tube and Inconel 625 Seamless Tube

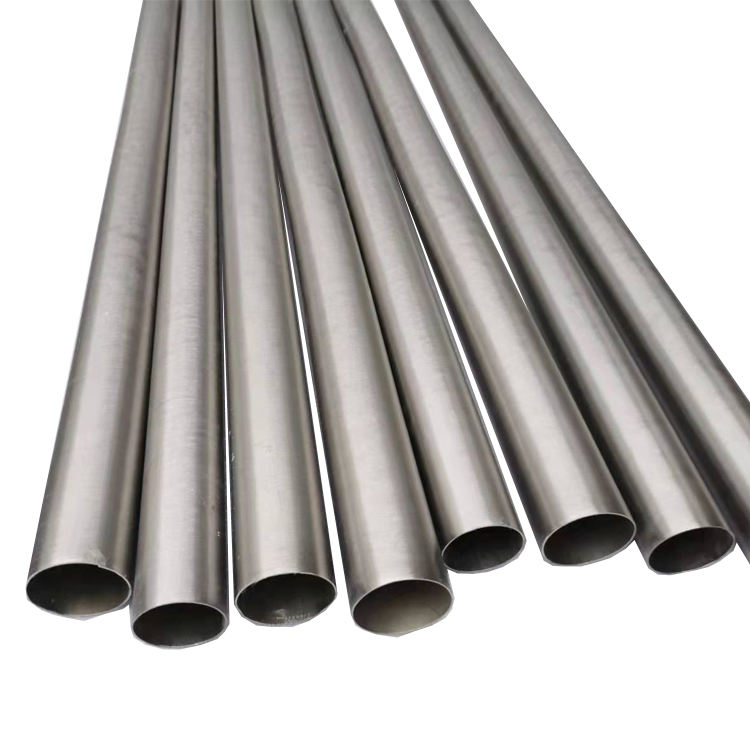

Inconel 625 Tube

Inconel 625 Tube

ASTM B829 UNS N06625

ASTM B829 UNS N06625

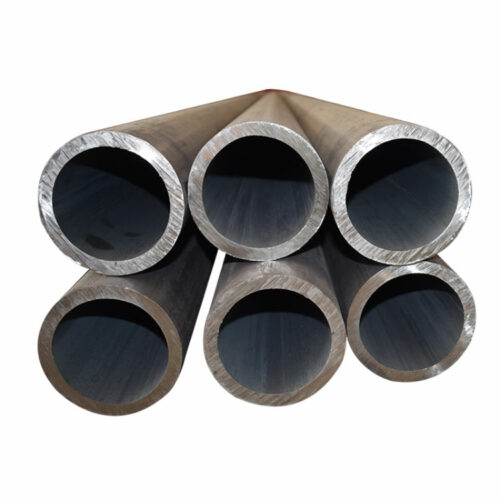

Inconel 625 Seamless Tube

Inconel 625 Seamless Tube

Inconel Tubing

Inconel Tubing

Inconel Tube

Thin Wall Inconel Tube

Inconel Seamless Tube

Inconel Seamless Tube

ASTM B163 Alloy 625 Tube sizes

Best Price Guarantee for all size of Alloy 625 Square Tube, Seam weld Tubing, redrawn, Straight Tube, hot rolled & cold rolled Tubing Ex Tianjin,China.

Inconel UNS N06625 Seamless Tubing

Size: 1/2″ OD – 12″ OD
OD: 3.00 – 219.10 mm
Thickness : 0.40 – 12.70 mm
Length: Single, Double Random & Cut Length

ASTM B444 UNS N06625 Welded Tubing

Size: 1/2″ – 12″ OD, Guage: 25 SWG – 10 SWG
OD: 6.35 to 114.3 mm O.D
Thickness : 0.8 – 12.7 mm
Length: up to 26 Meters

Inconel 625 Tube Specification

View specifications, dimensions and Price List of ASME SB444 annealed and coiled tube, buy from IRCA / CQI approved Inconel 625 Square Tubing suppliers in China

ASTM/ ASME Specification	Standard Specification for ASTM B163 Alloy 625 Seamless & Welded Superheater, Condenser, Hydraulic, Boiler and Heat-Exchanger Tubes ASTM B444 – UNS N06625 Cold-worked seamless tube ASTM B163 – Nickel Alloy 625 Condenser and Heat-Exchanger Tubes ASTM B704 – UNS N06625 Welded Tube Relevant American Standards: ASTM B751/ ASME SB751, ASTM B705/ ASME SB705, ASTM B775/ ASME SB775, ASTM B829/ ASME SB829, ASTM B704/ ASME SB704
Other Trade name:	Inconel Alloy 625 Tube are Haynes 625 Tube, Nickelvac 625 Tube, Chronic 625 Tube, Nicrofer 6020 Tube, Superimphy 625 Tube, Altemp 625 Tube, Pyromet 625 Tube, Chronin 625 Tube, Supermet 625 Tube and Udimet 625 Tube.
Shapes	Inconel Alloy 625 Round, Rectangular, Square, Hydraulic, Straight, “U” Shape, Coiled, Honed Tubes, Pan Cake Coils
Manufacturing Type	Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded
Thickness Range	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS
Swg & Bwg	10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
Standard	SUS, JIS, AISI, ASTM, GB, DIN, EN
Delivery Condition	Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF
Value Added Services	Cutting Beveling Threading Draw & Expansion as per required Size & Length Ultrasonic Testing Annealed & Pickled Bending Destructive and Non Destructive
END	Plain End, Beveled End, Treaded ASTM B444 UNS N06625 Tube
Processing Service	Bending, Welding, Decoiling, Punching, Cutting, Moulding
Technique	Inconel UNS N06625 Cold drawn, Cold rolled, Hot rolled, Extrusion Tube
Marking	Specification Material Grade Nominal Size Schedule or Wall Thickness Method of Manufacturing (Seamless / Welded) Heat Number Manufacturer’s Name or Custom Logo – on request Marked Sample: ASTM B444 UNS N06625 Seamless 113.60 mm OD x 6 mm W.T. HEAT No. xxxxxx
Test Certificate	DFARS compliant EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC) HS Code Commercial Invoice Raw Materials Certificate Moisture testing Fumigation Certificates 100% Radiography Test Report Heat Treatment Charts Third Party Inspection Report Surface roughness measurement Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab Form A for Generalized System of Preferences (GSP)
ASTM B163 Inconel 625 Tubing Packaging	Packed in PE Fabric Bundles or ply wooden box wrapped in plastic or Standard seaworthy export packing or as per customers’ request
Port	Tinajin,China
Supplier and exporter of Alloy 625	Boiler Tubes Boilers And Pressure Vessel Tubes High-Temperature Service Tubes Low-Temperature Services Tubes Nickel-Chromium Alloys Tubes Nickel-Chromium-Molybdenum Alloys Tubes Nickel-Iron-Chromium Alloys Tubes Welded Nickel Alloy Tubes
Stocking distributor of leading Inconel tube manufacturer	Nippon Steel Sandvik Sanyo Special Steel Kobe Steel Schoeller Bleckmann Salzgitter Mannesmann Tubacex etc.

Common types of Inconel Tubes

Global supplier of AMS 5581 Round Tubing, ISO 6207/ DIN 17751 Welded Tubes, BS 3074NA21 Tubo and DIN/ WNR 2.4856 Material in China.

ASTM B163 Alloy 625 Seamless Tube

ASTM B444 UNS N06625 Seamless Round Tubing
ASTM B163 Inconel 625 Redrawn Tube
Inconel WERKSTOFF NR. 2.4856 Extruded Seamless Tube
Inconel UNS N06625 Annealed Tubes
Inconel Alloy 625 Seamless Heat exchanger Tubes
Inconel NCF 625 Seam Weld Tubing

Inconel Exhaust Tubing

625 Inconel Rectangular Tube
ASTM B444 UNS N06625 Square Tubing
Inconel UNS N06625 Cold Rolled Tube
ASTM B163 NCF 625 Coiled Tubing
Inconel 625 Exhaust Tubing
ASTM B163 Inconel 625 Straight Tube

ASTM B444 UNS N06625 Tubes for sale

Looking for EAR-controlled Inconel 625 tube suppliers? Find a wide selection of Inconel tubes at the lowest price in China.

ASTM B163 Alloy 625 Instrument Tubing	ASME SB 444 UNS N06625 Sanitary Tube
Inconel Alloy 625 Square Tubing	Inconel 625 1 inch Tube
625 Inconel Exhaust Tubing	ASTM B163 Alloy 625 Dom Tube
ASTM B444 UNS N06625 Rectangular Tube	Inconel Alloy 625 Hydraulic Tubing
Inconel UNS N06625 Seamless Tube	625 Inconel Round Tube
Inconel Hot Finished Tube	Annealed Inconel Tube
Cold Drawn Inconel Tube	Cold Drawn Annealed Inconel Tubes

Inconel UNS N06625 Tubing Mechanical Properties

Alloy	Density	Melting Range	Tensile Stress	Yield Stress (0.2%Offset)	Elongation
Inconel 625	8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa – 930	Psi – 75,000 , MPa – 517	42.5 %

ASTM B163 Inconel 625 Tube Chemical Composition

Alloy	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel 625	0.10max	0.50 max	0.50 max	0.015max	–	5.0 max	58.0 min	20.0 – 23.0

Inconel NCF 625 Equivalent

NICKEL ALLOY	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Inconel 625	2.4856	N06625	NCF 625	NA 21	ХН75МБТЮ	NC22DNB4M	NiCr22Mo9Nb

Useful tips to select Inconel tube suppliers

Always buy from a certified suppliers in UK, USA or India
Price of Indian suppliers are low due to lowest labour rate in China
Find the ready stock of your sizes for cheapest quote
Ask for MTC and Test reports
Confirm the Minimum Order Quantity (MOQ) and delivery time
Compare price with other Inconel 625 tube suppliers in USA or UK
Buy your nearest Inconel tube distributors and suppliers
Check weight chart & pressure rating
Always buy from NQA and CQI/IRCA approved, PED approved or ISO certified suppliers
Compare price and specification of Inconel and Monel

Inconel 625 tube price in India

TUBE	FOB PRICE INDIA	FOB PRICE USA	FOB PRICE UK	FOB PRICE EUROPE
Inconel 625 Seamless Tube	INR 1,480/ Kg	US $ 20.09/ Kg	Pound sterling 15.01/ Kg	EURO 16.36/ Kg

Contact alloyworld for Free quote

Nickel Alloy 625 square tube sizes in mm

SQUARE TUBING SIZE ( IN MM)	WALL THICKNESS (WT IN MM)	WEIGHT (KG PER METRE)
20 X 20	2	1.11
25 X 25	2	1.43
25 X 25	2.5	1.74
25 X 25	3	2.04
30 X 30	2	1.74
30 X 30	2.5	2.14
30 X 30	3	2.51
30 X 30	3.2	2.65
40 X 40	2	2.37
40 X 40	2.5	2.92
40 X 40	3	3.45
40 X 40	4	4.46
40 X 40	5	5.40
50 X 50	2	3.00
50 X 50	2.5	3.71
50 X 50	3	4.39
50 X 50	4	5.72
50 X 50	5	6.97
50 X 50	6	8.20
50 X 50	8	10.50
60 X 60	3	5.34
60 X 60	3.2	5.67
60 X 60	3.6	6.34
60 X 60	4	6.97
60 X 60	5	8.54
70 X 70	2.5	5.28
70 X 70	3	6.28
70 X 70	3.5	7.25
70 X 70	3.6	7.46
70 X 70	4	8.23
70 X 70	5	10.10
70 X 70	8	15.29
70 X 70	10	19.13
80 X 80	3	7.22
80 X 80	3.5	8.35
80 X 80	3.6	8.59
80 X 80	4	9.48
80 X 80	5	11.70
80 X 80	6	13.80
80 X 80	6.3	14.40
80 X 80	8	17.83
80 X 80	10	21.88
90 X 90	3	8.16
90 X 90	3.5	9.45
90 X 90	3.6	9.72
90 X 90	4	10.70
90 X 90	5	13.30
90 X 90	6	15.70
90 X 90	6.3	16.40
90 X 90	8	20.32
90 X 90	10	25.53
100 X 100	3	9.10
100 X 100	4	12.00
100 X 100	5	14.80
100 X 100	6	17.60
100 X 100	6.3	18.40
100 X 100	8	22.90
100 X 100	10	27.86
100 X 100	12	33.44
120 X 120	4	14.50
120 X 120	5	18.00
120 X 120	6	21.30
120 X 120	6.3	22.30
120 X 120	8	27.90
120 X 120	10	34.13
120 X 120	12	39.94
120 X 120	16	54.64
140 X 140	6	25.97
140 X 140	8	32.89
140 X 140	10	41.15
150 X 150	4	18.30
150 X 150	5	22.70
150 X 150	6	27.00
150 X 150	6.3	28.30
150 X 150	8	35.40
150 X 150	10	43.47
150 X 150	12	53.48
150 X 150	16	65.05
160 X 160	6	27.39
160 X 160	8	36.90
160 X 160	10	46.88
180 X 180	5	27.97
180 X 180	6	33.26
180 X 180	8	43.00
180 X 180	10	53.00
180 X 180	12	61.01
180 X 180	12.5	65.20
180 X 180	16	81.30
200 X 200	5	31.18
200 X 200	6	37.09
200 X 200	8	48.00
200 X 200	10	59.30
200 X 200	12	68.84
200 X 200	12.5	73.00
200 X 200	16	90.91
250 X 250	6	46.83
250 X 250	8	60.50
250 X 250	10	75.00
250 X 250	12	88.45
250 X 250	12.5	92.70
250 X 250	16	111.48
300 X 300	6	55.30
300 X 300	8	74.18
300 X 300	10	90.70
300 X 300	12	108.68
300 X 300	12.5	112.00
300 X 300	16	141.84
350 X 350	10	105.93
350 X 350	12	126.74
350 X 350	16	166.94
400 X 400	8	97.56
400 X 400	10	121.95
400 X 400	12	151.97
400 X 400	16	191.94

ASME SB 704 UNS N06625 Welded Tube gauge thickness chart

GAUGE THK	THICKNESS RANGE (INCHES)	TYPICAL VALUE (INCHES)
22	0.025 through 0.029	0.028
20	0.031 through 0.035	0.035
19	0.038 through 0.042	0.042
18	0.044 through 0.049	0.049
17	0.053 through 0.058	0.058
16	0.060 through 0.065	0.065
15	0.066 through 0.074	0.072
14	0.075 through 0.085	0.083
13	0.087 through 0.097	0.095
12	0.101 through 0.111	0.109
11	0.112 through 0.122	0.12
10	0.126 through 0.136	0.134
9	0.140 through 0.150	0.148
8	0.157 through 0.167	0.165
7	0.175 through 0.185	0.18

Inconel Tubing outside diameter

NPS	OUTSIDE DIAMETER	SCH 5	SCH 10	SCH 40	SCH 80
1/2″	0.84	0.065	0.083	0.109	0.147
3/4″	1.05	0.065	0.083	0.113	0.154
1″	1.315	0.065	0.109	0.133	0.179
1-1/4″	1.66	0.065	0.109	0.14	0.191
1-1/2″	1.9	0.065	0.109	0.145	0.2
2″	2.375	0.083	0.109	0.154	0.218
2-1/2″	2.875	0.083	0.12	0.203	0.276
3″	3.5	0.083	0.12	0.216	0.3
3-1/2″	4	0.083	0.12	0.226	0.318
4″	4.5	0.083	0.12	0.237	0.337

ASTM B163 Alloy 625 Condenser and Heat-Exchanger Tubes dimensions

TUBE O.D.	TUBE GAUGE
	00	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23	24
	WALL THICKNESS (INCHES)
	0.380	0.340	0.300	0.284	0.259	0.238	0.220	0.203	0.180	0.165	0.148	0.134	0.120	0.109	0.095	0.083	0.072	0.065	0.058	0.049	0.042	0.035	0.032	0.028	0.025	0.022
	TUBE I.D.
1/4″	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	0.010	0.032	0.060	0.084	0.106	0.120	0.134	0.152	0.166	0.180	0.186	0.194	0.200	0.206
3/8″	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	0.015	0.045	0.079	0.107	0.135	0.157	0.185	0.209	0.231	0.245	0.259	0.277	0.291	0.305	0.311	0.319	0.325	0.331
1/2″	N/A	N/A	N/A	N/A	N/A	0.024	0.060	0.094	0.140	0.170	0.204	0.232	0.260	0.282	0.310	0.334	0.356	0.370	0.384	0.402	0.416	0.430	0.436	0.444	0.450	0.456
5/8″	N/A	N/A	0.025	0.057	0.107	0.149	0.185	0.219	0.265	0.295	0.329	0.357	0.385	0.407	0.435	0.459	0.481	0.495	0.509	0.527	0.541	0.555	0.561	0.569	0.575	0.581
3/4″	N/A	0.070	0.150	0.182	0.232	0.274	0.310	0.344	0.390	0.420	0.454	0.482	0.510	0.532	0.560	0.584	0.606	0.620	0.634	0.652	0.666	0.680	0.686	0.694	0.700	0.706
7/8″	0.115	0.195	0.275	0.307	0.357	0.399	0.435	0.469	0.515	0.545	0.579	0.607	0.635	0.657	0.685	0.709	0.731	0.745	0.759	0.777	0.791	0.805	0.811	0.819	0.825	0.831
1″	0.240	0.320	0.400	0.432	0.482	0.524	0.560	0.594	0.640	0.670	0.704	0.732	0.760	0.782	0.810	0.834	0.856	0.870	0.884	0.902	0.916	0.930	0.936	0.944	0.950	0.956
1 1/8″	0.365	0.445	0.525	0.557	0.607	0.649	0.685	0.719	0.765	0.795	0.829	0.857	0.885	0.907	0.935	0.959	0.981	0.995	1.009	1.027	1.041	1.055	1.061	1.069	1.075	1.081
1 1/4″	0.490	0.570	0.650	0.682	0.732	0.774	0.810	0.844	0.890	0.920	0.954	0.982	1.010	1.032	1.060	1.084	1.106	1.120	1.134	1.152	1.166	1.180	1.186	1.194	1.200	1.206
1 1/2″	0.740	0.820	0.900	0.932	0.982	1.024	1.060	1.094	1.140	1.170	1.204	1.232	1.260	1.282	1.310	1.334	1.356	1.370	1.384	1.402	1.416	1.430	1.436	1.444	1.450	1.456
1 3/4″	0.990	1.070	1.150	1.182	1.232	1.274	1.310	1.344	1.390	1.420	1.454	1.482	1.510	1.532	1.560	1.584	1.606	1.620	1.634	1.652	1.666	1.680	1.686	1.694	1.700	1.706
2″	1.240	1.320	1.400	1.432	1.482	1.524	1.560	1.594	1.640	1.670	1.704	1.732	1.760	1.782	1.810	1.834	1.856	1.870	1.884	1.902	1.916	1.930	1.936	1.944	1.950	1.956
2 1/4″	1.490	1.570	1.650	1.682	1.732	1.774	1.810	1.844	1.890	1.920	1.954	1.982	2.010	2.032	2.060	2.084	2.106	2.120	2.134	2.152	2.166	2.180	2.186	2.194	2.200	2.206
2 1/2″	1.740	1.820	1.900	1.932	1.982	2.024	2.060	2.094	2.140	2.170	2.204	2.232	2.260	2.282	2.310	2.334	2.356	2.370	2.384	2.402	2.416	2.430	2.436	2.444	2.450	2.456
2 3/4″	1.990	2.070	2.150	2.182	2.232	2.274	2.310	2.344	2.390	2.420	2.454	2.482	2.510	2.532	2.560	2.584	2.606	2.620	2.634	2.652	2.666	2.680	2.686	2.694	2.700	2.706
3″	2.240	2.320	2.400	2.432	2.482	2.524	2.560	2.594	2.640	2.670	2.704	2.732	2.760	2.782	2.810	2.834	2.856	2.870	2.884	2.902	2.916	2.930	2.936	2.944	2.950	2.956
3 1/4″	2.490	2.570	2.650	2.682	2.732	2.774	2.810	2.844	2.890	2.920	2.954	2.982	3.010	3.032	3.060	3.084	3.106	3.120	3.134	3.152	3.166	3.180	3.186	3.194	3.200	3.206
3 1/2″	2.740	2.820	2.900	2.932	2.982	3.024	3.060	3.094	3.140	3.170	3.204	3.232	3.260	3.282	3.310	3.334	3.356	3.370	3.384	3.402	3.416	3.430	3.436	3.444	3.450	3.456
3 3/4″	2.990	3.070	3.150	3.182	3.232	3.274	3.310	3.344	3.390	3.420	3.454	3.482	3.510	3.532	3.560	3.584	3.606	3.620	3.634	3.652	3.666	3.680	3.686	3.694	3.700	3.706
4″	3.240	3.320	3.400	3.432	3.482	3.524	3.560	3.594	3.640	3.670	3.704	3.732	3.760	3.782	3.810	3.834	3.856	3.870	3.884	3.902	3.916	3.930	3.936	3.944	3.950	3.956
4 1/4″	3.490	3.570	3.650	3.682	3.732	3.774	3.810	3.844	3.890	3.920	3.954	3.982	4.010	4.032	4.060	4.084	4.106	4.120	4.134	4.152	4.166	4.180	4.186	4.194	4.200	4.206
4 1/2″	3.740	3.820	3.900	3.932	3.982	4.024	4.060	4.094	4.140	4.170	4.204	4.232	4.260	4.282	4.310	4.334	4.356	4.370	4.384	4.402	4.416	4.430	4.436	4.444	4.450	4.456
4 3/4″	3.990	4.070	4.150	4.182	4.232	4.274	4.310	4.344	4.390	4.420	4.454	4.482	4.510	4.532	4.560	4.584	4.606	4.620	4.634	4.652	4.666	4.680	4.686	4.694	4.700	4.706
5″	4.240	4.320	4.400	4.432	4.482	4.524	4.560	4.594	4.640	4.670	4.704	4.732	4.760	4.782	4.810	4.834	4.856	4.870	4.884	4.902	4.916	4.930	4.936	4.944	4.950	4.956
5 1/4″	4.490	4.570	4.650	4.682	4.732	4.774	4.810	4.844	4.890	4.920	4.954	4.982	5.010	5.032	5.060	5.084	5.106	5.120	5.134	5.152	5.166	5.180	5.186	5.194	5.200	5.206

Check Nickel Alloy 625 Tubing ready stock in the following locations in UK

London, United Kingdom
Sheffield, United Kingdom
Edinburgh, United Kingdom
Manchester, United Kingdom
Cardiff, United Kingdom
Belfast, United Kingdom
Bristol, United Kingdom
Leeds, United Kingdom

Liverpool, United Kingdom
Leicester, United Kingdom
Birmingham, United Kingdom
Bradford, United Kingdom
Coventry, United Kingdom
Kingston upon Hull, United Kingdom
Glasgow, United Kingdom

References:

BAE Systems
London, United Kingdom
RWE Generation UK
Little Barford Power Station, Saint Neots PE19 6YT, UK
Bressenden Place
London, SW1E 5BH, United Kingdom
Energy UK
Charles House, 5-11 Regent St, St. James’s, London SW1Y 4LR, UK

MTR issued by Inconel tube manufacturer

Mill Test Report (MTR) required to certify chemical and mechanical properties, check below the types of Mill Test Certificates :

MTC TYPE	DESCRIPTION
EN 1024 3.1	Inspection certificate
EN 1024 3.1A	Inspection certificate 3.1A
EN 1024 3.1B	Inspection certificate 3.1B
EN 1024 3.1C	Inspection certificate 3.1C
