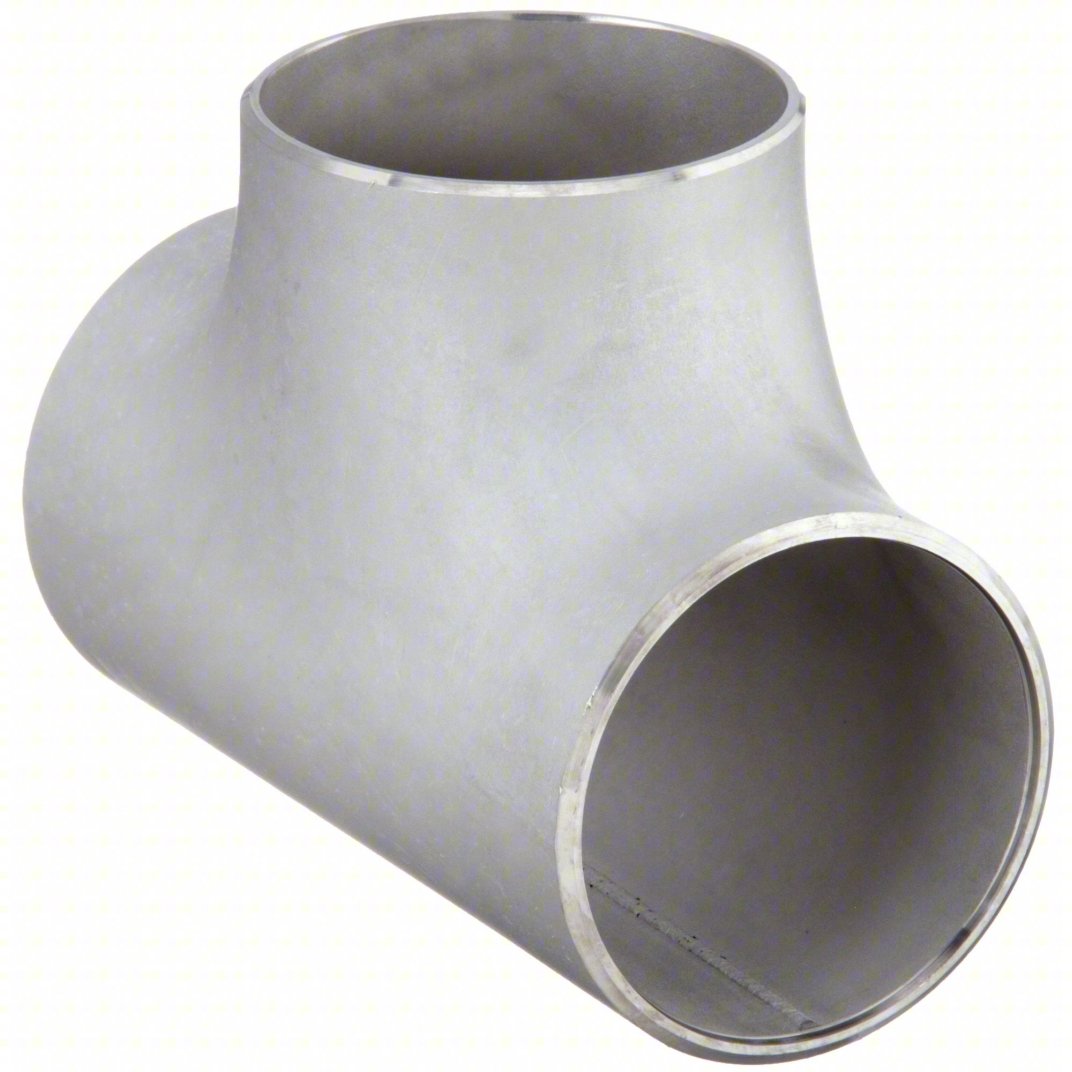

Buttweld Stainless Steel Equal/Reducer Tee
Stainless Steel Tee is a T-shaped pipe fitting that has three branches, normally has two forms with Equal Tee and Reducing Tee (Tee reducer), both are used to divide (combine) the pipelines to adjust the flow rate and change the direction.
Tee extrusion method (Hot Forming)
The hot-extrusion process consists of enclosing a piece of metal, heated to forging temperature, in a chamber called a “container” having a die at one end with an opening of the shape of the desired finished section, and applying pressure to the metal through the opposite end of the container. The metal is forced through the opening, the shape of which it assumes in cross-section, as the metal flows plastically under the great pressures used.
Tees use raw material with a bigger diameter than the finished product, the branch outlet is extruded from pipe while the main body is being pressed. The outlet’s wall thickness can also be adjusted as needed. Applied to Tees with large diameters, heavy wall thickness and/or special material with challenging workability that cannot be manufactured using the hydraulic bulge method.
Post-processing/Finishing:
Products: stainless steel Tee
Type: reducer Tee and Equal Tee
Technique: hot working are extrusion, drawing, forging and rolling
Grade: ASTM A403 WP304, 304L, 321, 316, 316L, 310S, 317,317L, 347H, 2205, 2507, S31803, 904L
Standard: ASME B16.9, ASME B16.25, DIN 2615, JIS B2311, JIS B2312, JIS B2313
Outer Diameter: DN12-DN1200, NPS 1/2″ to 24″ for the seamless tee, 24” above for Welded Tee
Wall Thickness: SCH10,SCH20,SCH30,STD SCH40,SCH60, XS, SCH80., SCH100,SCH120, SCH140, SCH160, XXS
Certification: ISO9001:2015, API Q1, 3.1 CERTIFICATE, CE
Applications: Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, water and nuclear power etc.
Packing: Wooden case or pallet or as customer requested
Delivery Lead Time: 7 days for the stock,15 days for none-stock material
Payment Terms: 30% T/T in advance as deposit,70% balance T/T before delivery
Shanxi Jiade Group Co., Ltd is one of the professional stainless steel tee manufacturers and suppliers equipped with a productive factory, welcome to check 316 equal tees, 316 reducer tee, stainless steel equal tee, 304 stainless steel equal tee, 304 stainless steel reducer tee price list and import high-quality products from us.
