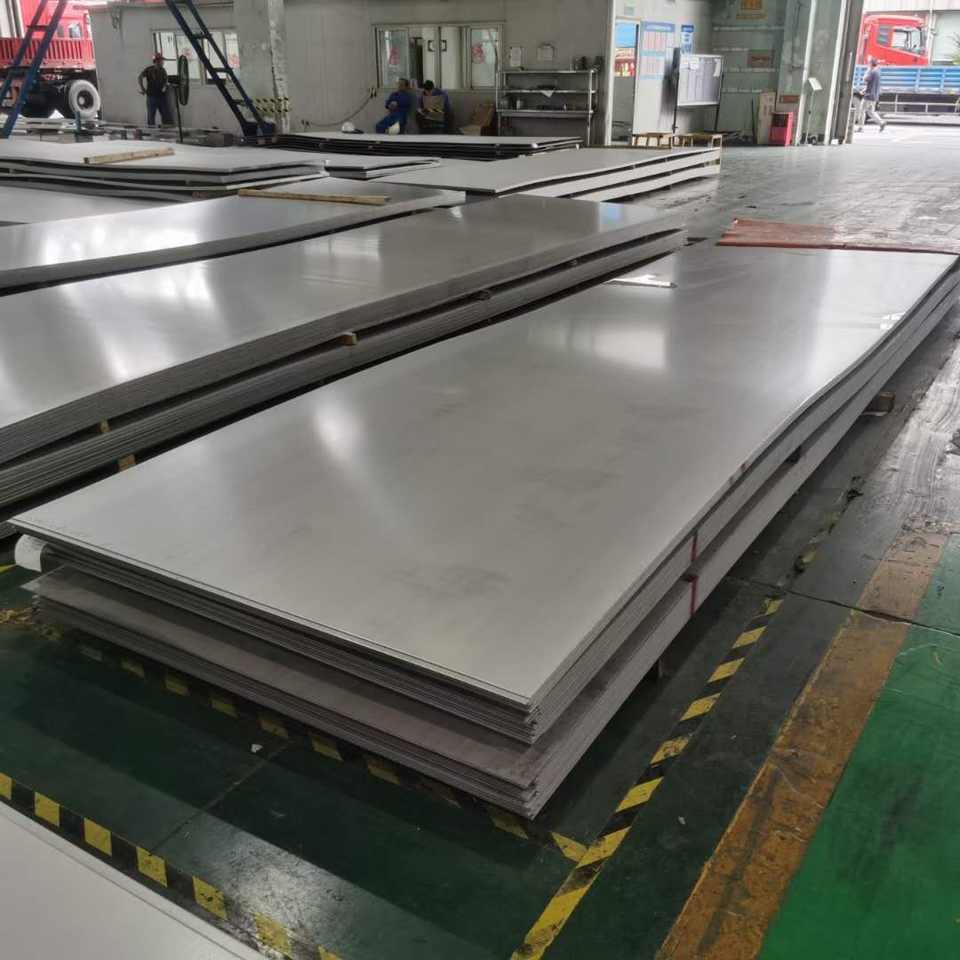

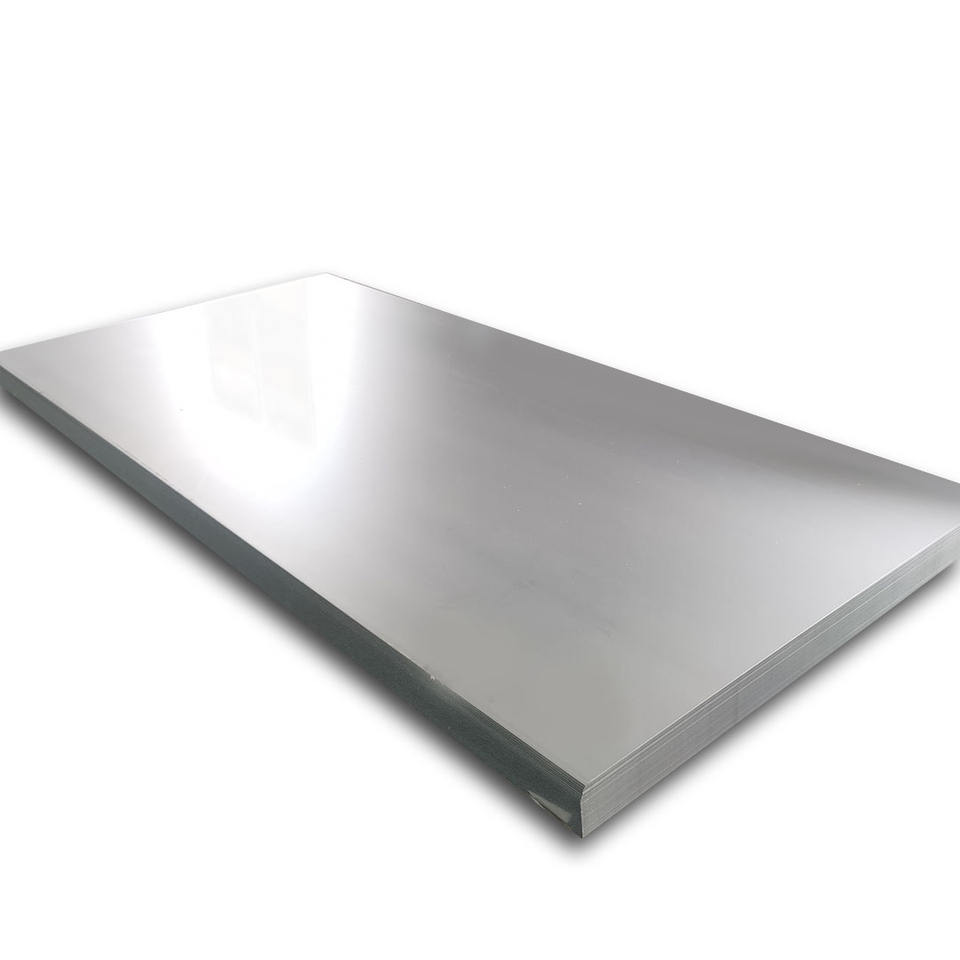

409 stainless steel plate
Model 409 is a thermostable ferrite stainless steel with good oxidation resistance and corrosion resistance compared to carbon steel. This titanium stabilization plate was developed for automotive exhaust systems, but its good formability, weldability, and corrosion resistance enable its use in other applications.
Please see our products and deals for details below:
Width: 500-2000mm or customized
Length: 1,000-12,000 mm or customized
Thickness: cold rolled: 0.33-3 mm, hot rolled: 3-120mm
Criteria: ASTM A167, A176, A240 / A240M, A263, A264, A265, A666, A480 / A480M, EN 10088-2, and JIS G4305
Surface treatment: 2B, 4, BA, 1 (HRAP) and customer specific polishing.
Composition specification: (%)
| grade | C | manganese | And | phosphorus | Trumpets | chromium | In | n | and so on | niobium | |
| 409
S40900 |
minute. | – | – | – | – | – | 10.5 | – | 6x%C | ||
| utmost. | 0.08 | 1.00 | 1.00 | 0.045 | 0.030 | 11.7 | 0.50 | 0.75 | |||
|
S40910 |
minute. | – | – | – | – | – | 10.5 | – | – | 6x%C | – |
| utmost. | 0.03 | 1.00 | 1.00 | 0.040 | 0.020 | 11.7 | 0.50 | 0.030 | 0.50 | 0.17 | |
|
S40920 |
minute. | – | – | – | – | – | 10.5 | – | – | 0.15 & 8 x (C+N) | – |
| utmost. | 0.03 | 1.00 | 1.00 | 0.040 | 0.020 | 11.7 | 0.50 | 0.030 | 0.50 | 0.10 | |
|
S40930 |
minute. | – | – | – | – | – | 10.5 | – | – | Ti + Nb = (0.08+8) x (C+N) | |
| utmost. | 0.03 | 1.00 | 1.00 | 0.040 | 0.020 | 11.7 | 0.50 | 0.030 | 0.75 | ||
Mechanical performance specifications:
| grade | Tensile Strength (MPa)
minute. |
Proof of yield strength 0.2% (MPa)
minute. |
Elongation rate (% in 50mm) min. | hardness | |
| Rockwell B (HRB)
utmost. |
Bruss (HB)
utmost. |
||||
| 409 | 380 | 170 | 20 | 95 | 207 |
| These same stretch, yield, and elongation limits also apply to other grades in the ASTM A240M. The hardness limits for these other plates in plate rolling are up to 88 HRB and 179 HB. | |||||
Physical properties (typical values for annealing conditions)
| grade | Density (kg/m 3) | Elastic module (GPa) | mean thermal expansion coefficients | thermal conductivity | specific heat | resistivity | |||
| 0100°C
(Micron/m/°C) |
0315°C
(Micron/m/°C) |
0538°C
(Micron/m/°C) |
At 100°C (W/mK) | At 500°C (W/mK) | 0100°C
(J/kg.K ) |
(nΩ.m ) | |||
| 409 | 7700 | 208 | 11.0 | 11.7 | 12.4 | 25.8 | 27.5 | 460 | 600 |
Grade and specification comparison:
| grade | we
no |
European standard | Swedish SS | Japanese
he |
|
| no | surname and personal name | ||||
| 409 | S40900 | 1.4512 | X6CrTi12/X2CrTi12 | – | Su 409 |
| There are no known standardized international alternatives for the ASTM S40910, S40920, and S40930 grades. | |||||
| These comparisons are only approximate. The list is intended as a comparison of functionally similar materials and not as a schedule as a contract equivalent. If an exact equivalent is required, the original specification must be consulted. | |||||
Corrosion resistance
Grade 409 stainless steel panels have excellent exhaust gas resistance and atmospheric corrosion resistance, better than 410 martensite steel and 3CR12 containing 12% chromium. However, its corrosion resistance is lower than that of the grade 430 steel plate containing 17% chromium. The surface of Grade 409 steel plate is prone to mild corrosion, which limits the use of steel for decorative purposes.
heat resistance
Grade 409 stainless steel plate provide scale resistance during continuous operation at temperatures up to 675°C and up to 815°C under intermittent conditions. These temperatures are related to the specific service environment.
heat treatment
Annealing of the grade 409 steel plate was performed in a temperature range of 790 to 900°C, followed by air cooling. Heat treatment will not harden grade 409 steel.
apply
- Car exhaust pipe
- Catalytic converter system
- muffler
