Introduction:
317 Stainless steel pipe has very excellent corrosion resistance, it especially resists pitting in phosphoric and acetic acids and also has very excellent intergranular corrosion resistance. The cost of 317 is relatively higher than 316/316L (contains 10% Nickel minimum) stainless steel as it contains 11% Nickel minimum.
Specification:

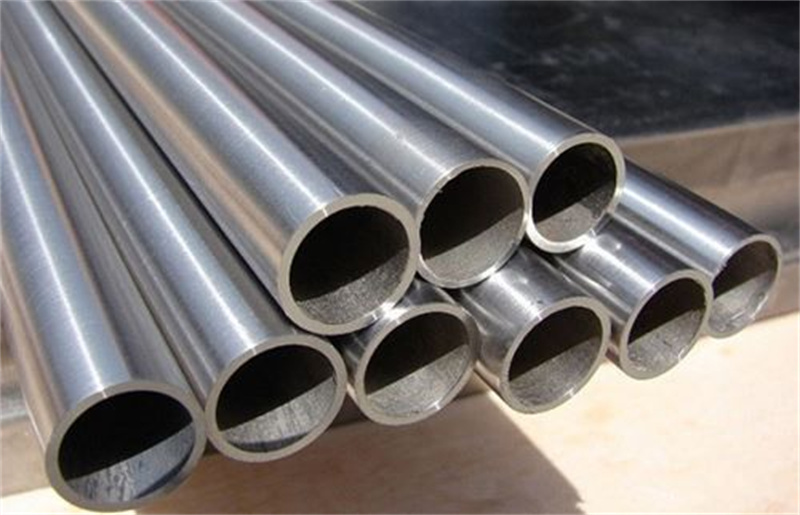

Product: 317 Stainless Steel Pipe
Process: Seamless, and Welded
Shapes: Round, Square, Rectangular
Round: 10-1219mm, Square:20x20mm – 500x500mm, Rectangular: 20x30mm to 400x600mm
Wall Thickness: 0.6 – 62mm
Length:3000mm, 5800mm, 6000mm, 11800mm, 12000mm
Standard: ASTM A213, ASTM A312, ASTM A249, ASTM A269, ASTM A409, ASTM A358, ASTM A511, ASTM A554
Surface treatment: Pickled, Polished.
Chemical Composition (Weight %) (all values are maximum unless a range is otherwise indicated):
| Elements | Content (%) | Elements | Content (%) |
| Cr | 18.0 min.-20.0 max. | P | 0.045 |
| Ni | 11.0 min.-15.0 max. | S | 0.03 |
| Mo | 3.0 min. – 4.0 max. | Si | 0.75 |
| C | 0.03 | N | 0.1 |
| Mn | 2 | Fe | Balance |
Mechanical Properties
Values at 68°F (20°C) (minimum values, unless specified)
| Yield Strength 0.2% Offset |
Ultimate Tensile Strength |
Elongation in 2 in. |
Hardness |
|---|---|---|---|
| (MPa) (min.) | (MPa) (min.) | % (min.) | (max.) |
| 205 | 515 | 40 | 95 Rockwell B |
Applications:
- Air Pollution Control — flue gas desulfurization systems (FGD)
- Chemical and Petrochemical Processing
- Explosives
- Food and Beverage Processing
- Petroleum Refining
- Power Generation — condensers
- Pulp and Paper
Other relevant standards & grades:
UNS S31700, AISI 317, DIN 1.4449, DIN X5CrNiMo1713, ASME SA240, ASME SA249, ASME SA312, ASME SA403, ASME SA409, ASTM A167, ASTM A240, ASTM A249, ASTM A269, ASTM A276, ASTM A312, ASTM A314, ASTM A403, ASTM A409, ASTM A473, ASTM A478, ASTM A511, ASTM A554, ASTM A580, ASTM A632, FED QQ-S-763, SAE J405
